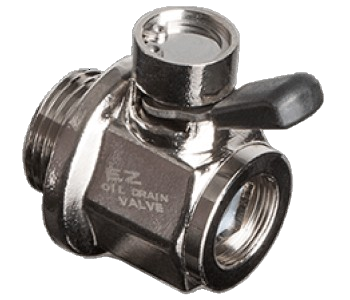

EZ Oil Drain Valve

Trusted by Manufacturers Worldwide

Frequently Asked Questions

FAQ

FAQ’s for FAQ

  1. Will my EZ Oil Drain Valve leak?
  2. Will my EZ Oil Drain Valve open up on the road?
  3. How long will my EZ Oil Drain Valve last?
  4. How much does the EZ Oil Drain Valve extend out from the oil pan?
  5. How do I install and use my EZ Oil Drain Valve?
  6. How do I know which EZ Oil Drain Valve to use?
  7. My oil pan has a recess around the drain plug. Can I still install my EZ Oil Drain Valve?
  8. How do I know which Hose End to use/buy?
  9. Can I use the EZ Oil Drain Valve for other applications?
  10. Technical Specs

Q: Will my EZ Oil Drain Valve leak?

No. The EZ Oil Drain Valve incorporates the “ball valve” design of valves used in pressurized gas applications and will not leak. Every single valve is constructed under precise specifications and pressure tested, ensuring a perfect seal upon factory approval. The EZ Oil Drain Valve is produced from an ISO-9001 certified factory.

Q: Will my EZ Oil Drain Valve open up on the road?

No. When installed, the EZ Oil Drain Valve only extends about 1/2" inch from the oil pan more than a stock oil drain plug in its closed position. The valve's effective locking system requires a double-action mechanism to open it, preventing any accidental openings. Unlike spring-loaded gate valves, the heavy-duty ball valve construction will withstand any engine vibration.

Attention:

For users under extreme conditions:

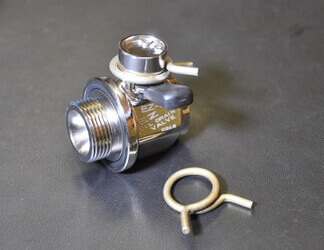

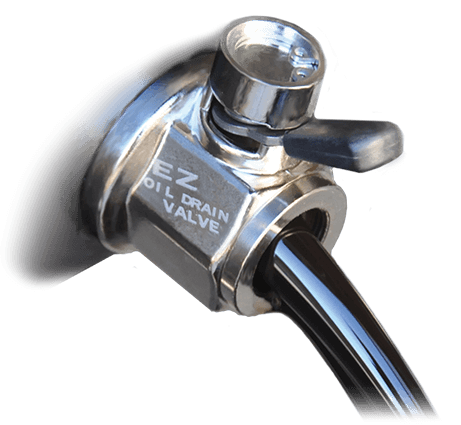

Using the EZ Oil Drain Valve under extreme circumstances such as, off-road vehicles, agricultural tractors, and logging equipment (i.e. corn fields, brush areas), it is advised that a hose clip as shown below be applied for additional safety and security. Hose clips can be purchased at any hardware stores and will securely keep the lever closed in the locked position at all times.

Faq valve image

Q: How long will my EZ Oil Drain Valve last?

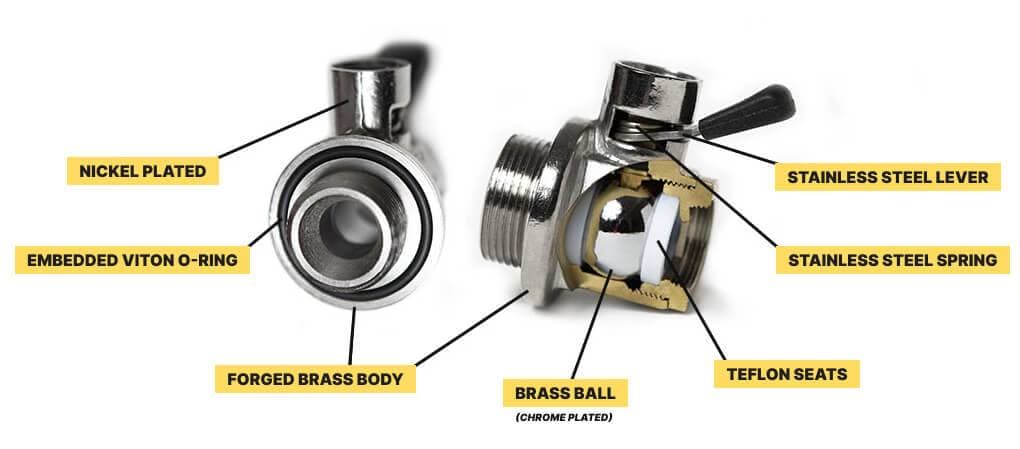

Your EZ Oil Drain Valve is constructed out of corrosion-resistant forged brass, stainless steel, and nickel-plated for added protection from the elements. Brass is the ideal material as it can withstand temperature extremes as well as harsh environmental factors. (I.e. salt, water, oil, chemicals, etc.) Your EZ Oil Drain Valve will outlast your engine.

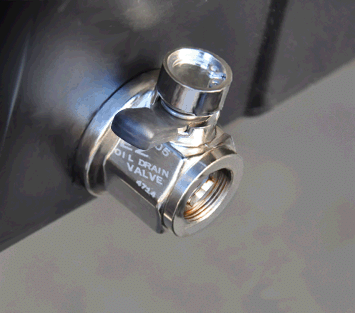

Q: How much does the EZ Oil Drain Valve extend out from the oil pan?

The EZ Oil Drain Valve for passenger cars and light trucks is approximately 7/8" long. This means that the valve only extends out 1/2" more than the standard plug head outside from the oil pan.

Q: How do I install and use my EZ Oil Drain Valve?

Installation is easy. Simply follow the instructions below.

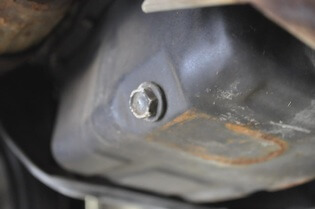

  1. Remove drain plug and drain oil.
  2. Hand install the valve until tight, and give 1/8 turn with a small crescent wrench on the body. DO NOT OVER-TIGHTEN!
  3. Close the lever and refill with engine oil.

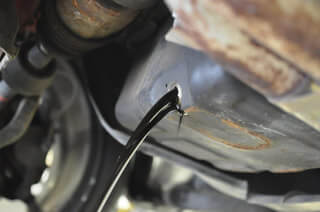

When it’s time for an oil change, using your EZ Oil Drain Valve is simple.

  1. Lift up the lever and turn counter-clockwise.
  2. Turn back the lever to close.
  3. Make sure the lever is secured in the locked position.
Faq valve image Faq valve image

Q: How do I know which EZ Oil Drain Valve to use?

Please go to the Sizes & Application page to find your EZ Oil Drain Valve. The EZ Oil Drain Valve fits all engines, and you will be able to find a valve that fits. Feel free to talk with our valve experts at 425-999-1200 for any technical help. You may also email us at sales@ezoildrainvalve.com

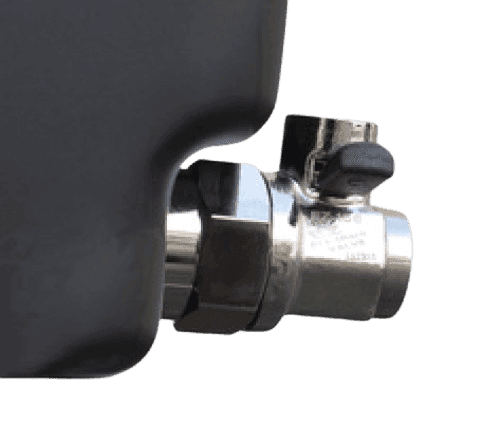

Q: My oil pan has a recess around the drain plug. Can I still install my EZ Oil Drain Valve?

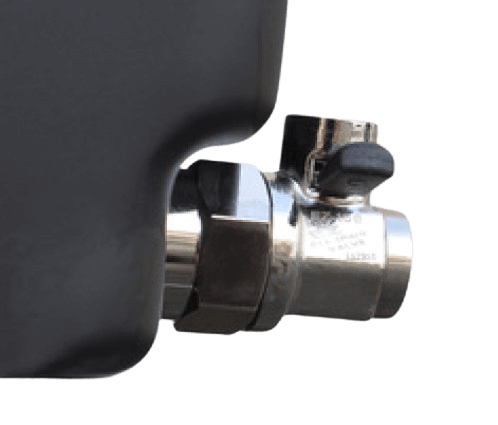

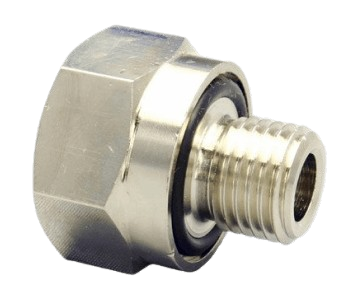

Yes. Engines with a recessed oil pan may require an adapter (A-106, A-107, etc.) to prevent the valve from hitting against the oil pan wall during installation. Although our application chart indicates engines requiring an adapter, it is always recommended to determine the shape of the drain port. (In some cases longer adapters are necessary, i.e. part number AL-106). See Sizes & Application for more details.
Faq valve image Faq valve image

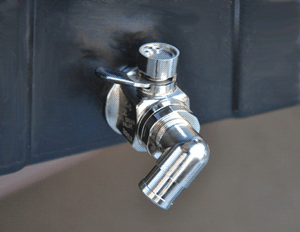

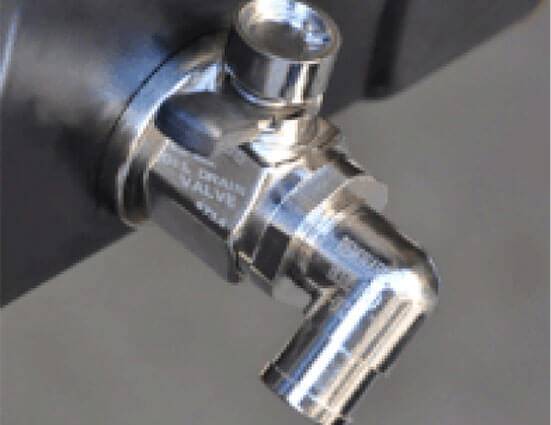

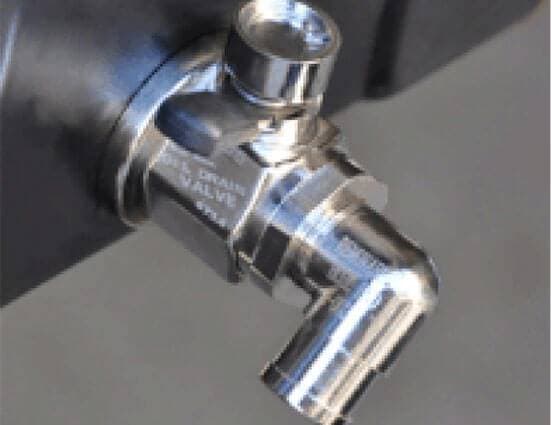

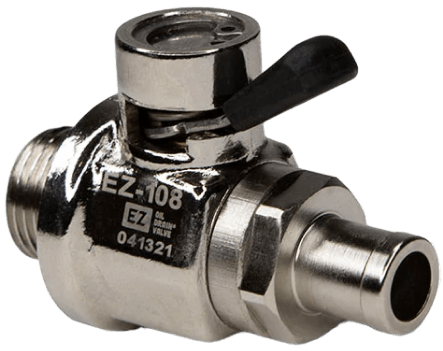

Q: How do I know which Hose End to use/buy?

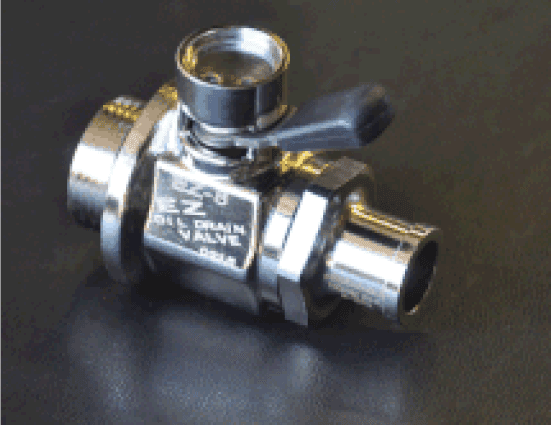

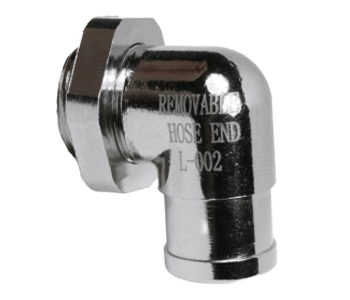

Hose Ends come in two types, Straight or L-Shaped. Make sure that H-001 and L-001 are used for small body valves with Hose ID: 3/8" The H-002 and L-002 are used for medium-large body valves with Hose ID: 5/8.” Complete details on the Hose End sizes are listed on the part numbers/size chart. (Note: Hose Ends are sold separately)

Q: Can I use the EZ Oil Drain Valve for other applications?

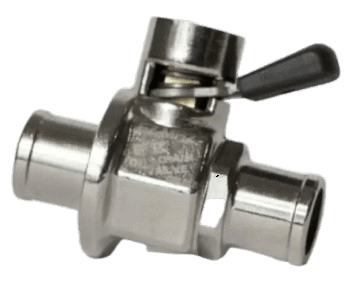

Yes, the EZ Oil Drain Valve can be used for many applications, including transmission oil, radiator coolant, water drain, fuel drain, fuel lines, gearboxes, and synthetic motor oil.

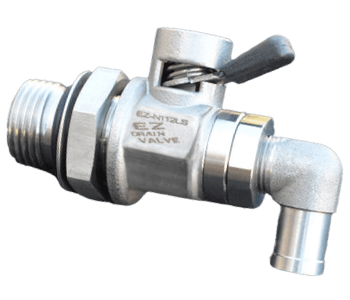

For Diesel Exhaust Fluid (DEF) tank drain applications, please learn about our stainless steel version of the EZ Oil Drain Valves by clicking on the icon below.

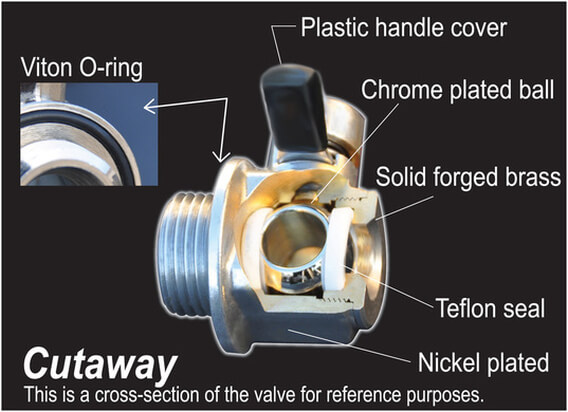

Q: Technical Specs

Valve Body
Corrosion Resistant Nickel-plated Brass
Pressure Rating
250 PSI
Temperature Rating
-40° F to 365° F
Internal Ball
Chrome-plated Brass
Seat
Teflon
Lever
Plastic Coated Stainless Steel
Spring
Stainless Steel
O-ring
Viton
Warranty
Lifetime
